Product Information

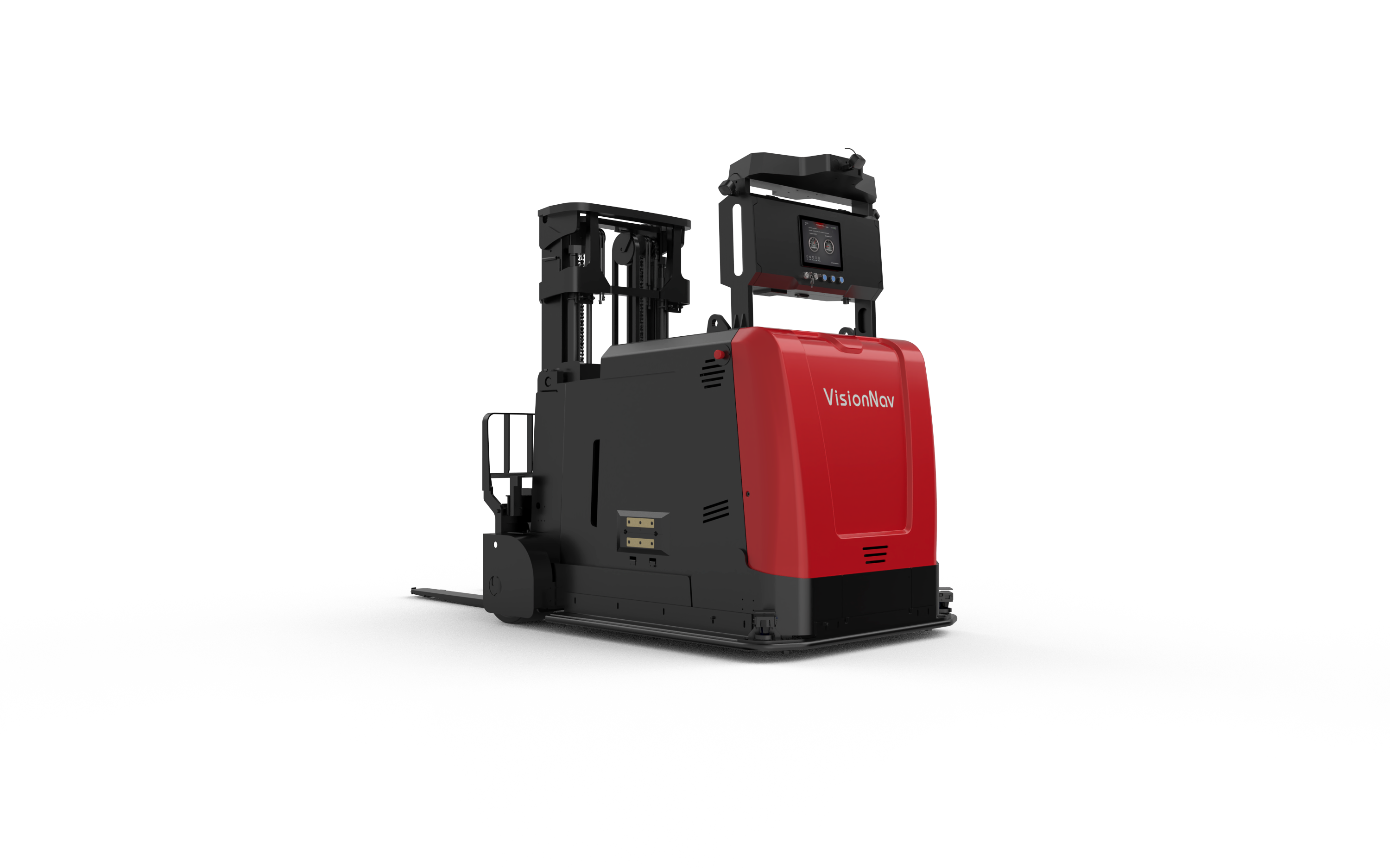

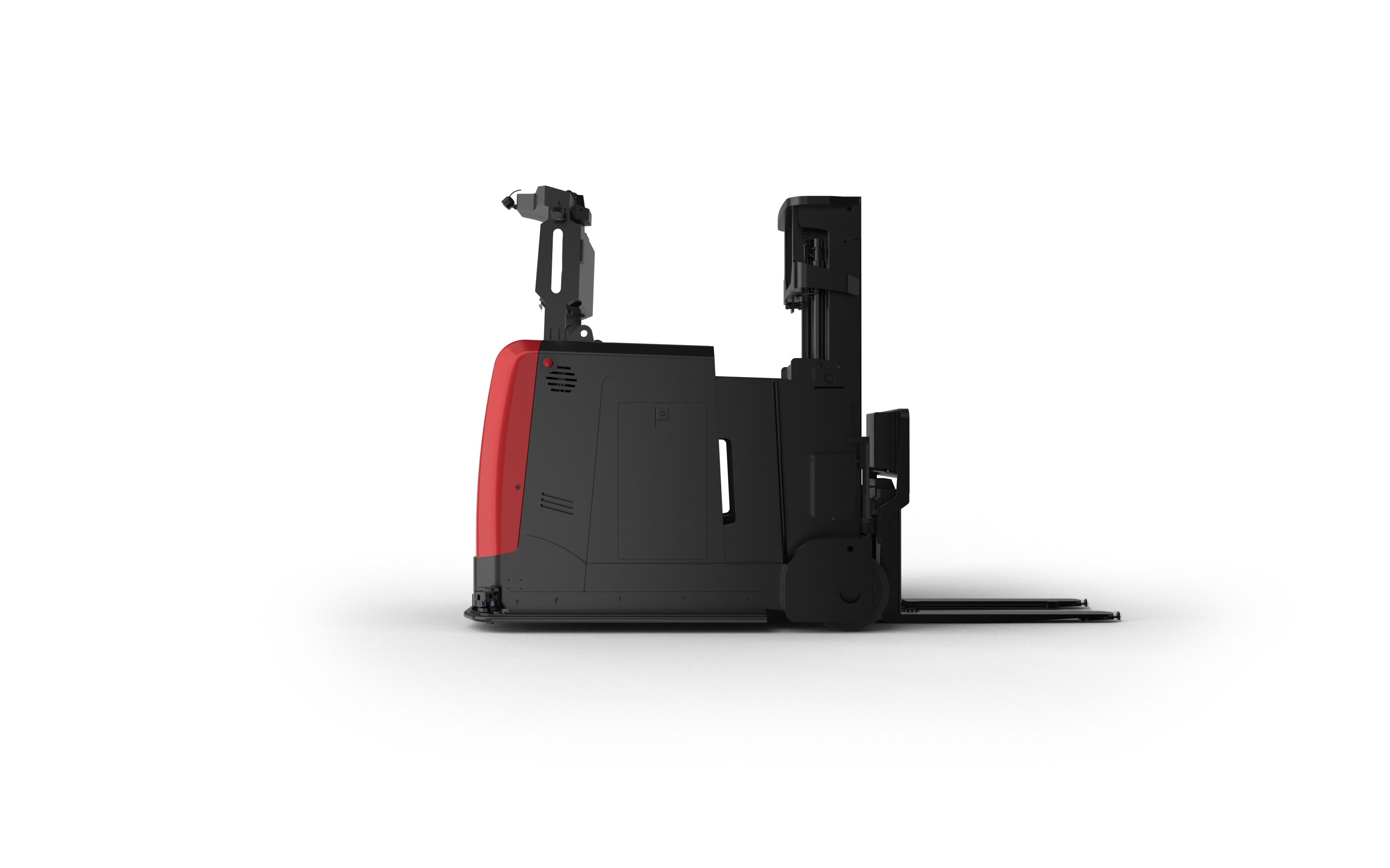

VNE20(VL)-07
VNE20(VL)-07
Main Functions
VNE20(VL)-07
Fundamental Technical Parameters
| Body Weight | 3,350kg (7,400lb) | |
|---|---|---|
| Dimensions | Vehicle Dimensions | 3,460 x 1,250 x 2,040mm 136 x 50 x 80in |
| Fork Dimensions | 1,190 x 100 x 40mm 47 x 4 x 1.6in |
|
| Width Across Forks | 450/1,000mm 17.7/39.4in |
|
| Width Inside Straddle | 255/775mm 9/31in |
|
| Technology | Positioning Method | 3D SLAM-based |
| Perception Method | 3D Scanning-based | |
Capacity
| Rated Load Capacity | 2,000kg (4,400lb) | |
|---|---|---|
| Load Center Distance | 500mm (20in) | |
| Fork Lifting Height | Up to 4,500mm (177in) | |
Speed
| Max.Speed | Straight Forward Speed (Loaded/Empty) | 2.7m/s, 2.7m/s |
|---|---|---|
| Straight Backward Speed (Loaded/Empty) | 0.6m/s, 0.6m/s | |
| Turning Speed | Forward Turning Speed (Loaded/Empty) | 1.0m/s ,1.0m/s |
| Backward Turning Speed (Loaded/Empty) | 0.6m/s, 0.6m/s |
Safety Protection
| Front Safety Protection | Laser Scanner Protection + Anti-Collision Bumper | |
|---|---|---|
| Rear Safety Protection | Laser Scanner Protection + Contact Sensor | |
| Top Safety Protection | 3D Laser Scanner Protection | |
| Side Safety Protection | Laser Scanner Protection + Anti-Collision Bumper | |
| Other Safety Protection | Emergency Stop Button + Acousto-Optic Alarm | |
Environment
| Min. Stacking Aisle Width | 3,760mm (148in) | |
|---|---|---|
| Min. Turning Aisle Width | 2,470mm (98in) | |
| Ambient Temperature | -5℃～40℃ | |
| Ambient Humidity | 20%～95% | |
| Ground Flatness | ±5mm/㎡ (±0.20in/㎡) | |
| Max. Climbing Ability (Loaded/Empty) | 13%, 15% (7°, 8.5°) | |
| Max. Gap Width | 50mm (1.97in) | |
| Max. Obstacle Height | 30mm (1.18in) | |
Battery
| Battery Type | Lithium Iron Phosphate Battery (LiFePO4) | |
|---|---|---|
| Charging Mode | Manual/Automatic Charging | |
※For more details, please contact us.
